74AVC4T245QRGYRQ1 Translation - Voltage Levels AC 4B Dual-Supply

74AVC4T245QRGYRQ1 Datasheet

Product Details

General description

The 74AVC4T245 is an 4-bit, dual supply transceiver that enables bidirectional level translation. The device can be used as two 2-bit transceivers or as a 4-bit transceiver. It features two data input-output ports (nAn and nBn), a direction control input (nDIR), a output enable input (nOE) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins nAn, nOE and nDIR are referenced to VCC(A) and pins nBn are referenced to VCC(B). A HIGH on nDIR allows transmission from nAn to nBn and a LOW on nDIR allows transmission from nBn to nAn. The output enable input (nOE) can be used to disable the outputs so the buses are effectively isolated.
The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, both nAn and nBn are in the high-impedance OFF-state.

FeatureS

■ Wide supply voltage range:
♦ VCC(A): 0.8 V to 3.6 V
♦ VCC(B): 0.8 V to 3.6 V
■ Complies with JEDEC standards:
♦ JESD8-12 (0.8 V to 1.3 V)
♦ JESD8-11 (0.9 V to 1.65 V)
♦ JESD8-7 (1.2 V to 1.95 V)
♦ JESD8-5 (1.8 V to 2.7 V)
♦ JESD8-B (2.7 V to 3.6 V)
■ ESD protection:
♦ HBM JESD22-A114E Class 3B exceeds 8000 V
♦ MM JESD22-A115-A exceeds 200 V
♦ CDM JESD22-C101C exceeds 1000 V
■ Maximum data rates:
♦ 380 Mbit/s (≥ 1.8 V to 3.3 V translation)
♦ 200 Mbit/s (≥ 1.1 V to 3.3 V translation)
♦ 200 Mbit/s (≥ 1.1 V to 2.5 V translation)
♦ 200 Mbit/s (≥ 1.1 V to 1.8 V translation)
♦ 150 Mbit/s (≥ 1.1 V to 1.5 V translation)
♦ 100 Mbit/s (≥ 1.1 V to 1.2 V translation)
■ Suspend mode
■ Latch-up performance exceeds 100 mA per JESD 78 Class II
■ Inputs accept voltages up to 3.6 V
■ IOFF circuitry provides partial Power-down mode operation
■ Multiple package options
■ Specified from −40 °C to +85 °C and −40 °C to +125 °C

Specifications

Form,Package,Functional compatible component

Descriptions

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.

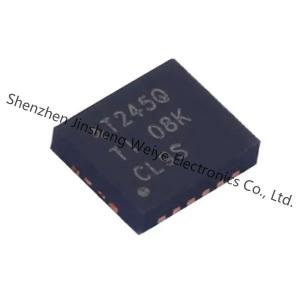

74AVC4T245QRGYRQ1 Translation - Voltage Levels AC 4B Dual-Supply Images
